What is FRP tank? FRP tank meaning is Fiberglass Reinforced Plastic tank available to be used in various applications.
We sell FRP tank with the highest material quality and assure low maintenance service over the years of usage. Our FRP tanks performance meets your companies requirements for a certain crucial process in the industry. It give you no hassle at all on worrying for any FRP tank repair as it is really durable for a long term use.
Inquiry More
We supply Fiberglass Reinforced Tanks (FRP) designed to your specs. Our FRP tanks are easy to carry. Specially that we are into waste water treatment, we are really very careful on the type of tanks that we are using all throughout the process as various chemicals are involve.
This FRP material full form plays a huge advantage over other available tanks in the market. We made sure that on each certain process, the tank performance won't fail as it would cost much for our company if it will. Good thing, FRP tanks provided us the assurance that we expected.
We supply many kinds of frp tanks

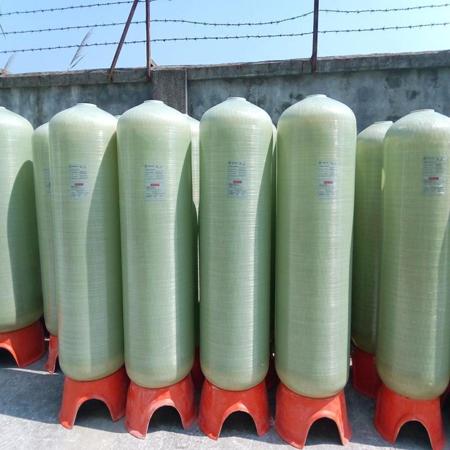

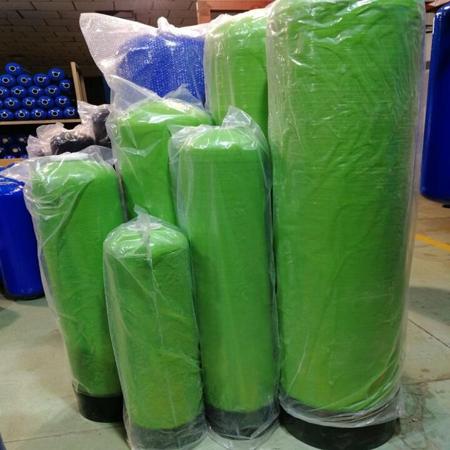

There are many frp tanks in our factory

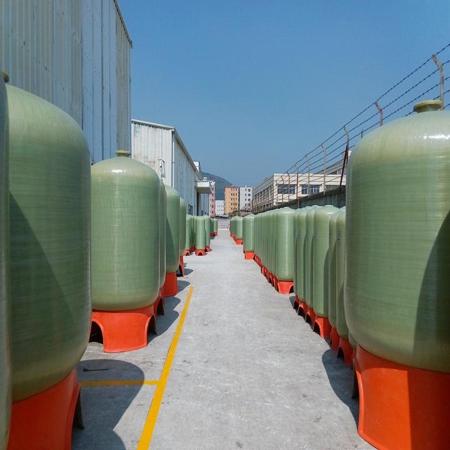

We offer big frp tanks to our customers
This FRP tank manufacturing process is done by a modern automated winding filament technique in accordance with export standards.
frp pressure tank structure
equipment infomation o
equipment infomation
| Product Name | Popular assembled galvanized steel water tank |
| Material | Hot galvanized steel |
| Panel size | 1220*1220, 1000x1000, 1000x500, 500x500 |
| Panel thickness | From 2mm to 5mm |
| Connection type | Bolts & nuts |
| Foundation | Concrete foundation and U-steel bottom base |
| Accessories | Leaking stoppage, tiepiece, support, flange, sealing gasket, rubber strip, screws, tiepiece plant, ladder, washer, fasten clamp, water gauge. |
| Application | as the storage equipment for reclaimed water, fire water; widely used in mining, residential buildings, hotels, office buildings, schools, restaurants and other public facilities. |
| Model | Vessel Size | Vol | Opening | Dimension/mm | Base | |||||
| inch | mm | L | Top | Bot | LA | LB | LC | D | ||
| 0713/2.5T | 7x13 | 181x335 | 6.3 | 2.5"NPSM | / | 335 | 330 | / | 181 | PP |
| 1717/2.5T | 7x13 | 181x440 | 8.5 | 2.5"NPSM | / | 440 | 435 | / | 181 | PP |
| 0735/2.5T | 7x35 | 181x895 | 19.1 | 2.5"NPSM | / | 895 | 890 | / | 181 | PP |
| 0744/2.5T | 7x44 | 181x1125 | 24.3 | 2.5"NPSM | / | 1125 | 1120 | / | 181 | PP |
| 0813/2.5T | 8x13 | 205x335 | 7.4 | 2.5"NPSM | / | 335 | 330 | / | 205 | PP |
| 0817/2.5T | 8x17 | 205x440 | 10.5 | 2.5"NPSM | / | 440 | 433 | / | 205 | PP |
| 0835/2.5T | 8x35 | 205x895 | 23.6 | 2.5"NPSM | / | 895 | 888 | / | 205 | PP |
| 0844/2.5T | 8x44 | 205x1125 | 31.3 | 2.5"NPSM | / | 1125 | 1118 | / | 205 | PP |
| 0917/2.5T | 9x17 | 232x440 | 13.2 | 2.5"NPSM | / | 440 | 435 | / | 232 | PP |
| 0935/2.5T | 9x35 | 232x898 | 31.6 | 2.5"NPSM | / | 898 | 890 | / | 232 | PP |
| 0942/2.5T | 9x42 | 232x1074 | 38.5 | 2.5"NPSM | / | 1074 | 1067 | / | 232 | PP |
| 0948/2.5T | 9x48 | 232x1228 | 44.6 | 2.5"NPSM | / | 1228 | 1221 | / | 232 | PP |
| 1017/2.5T | 10x17 | 257x450 | 16.5 | 2.5"NPSM | / | 450 | 430 | / | 257 | PP |
| 1035/2.5T | 10x35 | 257x910 | 38.3 | 2.5"NPSM | / | 910 | 890 | / | 257 | PP |
| 1044/2.5T | 10X44 | 257x1130 | 49.5 | 2.5"NPSM | / | 1130 | 1114 | / | 257 | PP |
| 1054/2.5T | 10x54 | 257x1388 | 61.9 | 2.5"NPSM | / | 1388 | 1370 | / | 257 | PP |
| 1248/2.5T | 12x48 | 307x1220 | 77.3 | 2.5"NPSM | / | 1220 | 1214 | / | 307 | PP |
| 1252/2.5T | 12x52 | 307x1335 | 84.8 | 2.5"NPSM | / | 1335 | 1328 | / | 307 | PP |
| 1265/2.5T | 12x65 | 307x1650 | 106.3 | 2.5"NPSM | / | 1400 | 1392 | / | 334 | PP |
| 1344/2.5T | 13x44 | 334x1135 | 82.9 | 2.5"NPSM | / | 1662 | 1654 | / | 360 | PP |
| 1354/2.5T | 13x54 | 334x1400 | 103.6 | 2.5"NPSM | / | 1400 | 1392 | / | 334 | PP |
| 1665/2.5T | 16x65 | 410x1670 | 187.7 | 2.5"NPSM | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T | 16x65 | 410x1670 | 187.7 | 4"-8UN | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T 4B | 16x65 | 410x1830 | 187.7 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 410 | FRP Tripod |
| 1685/4T | 18x65 | 465x1675 | 249 | 4"-8UN | / | 1670 | 1660 | / | 465 | FRP Tripod |
| 1865/4T 4B | 16x65 | 465x1825 | 249 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 465 | FRP Tripod |
FRP coating procedure is done meticulously that on its outer shell, it has a high-performance epoxy resin with polyethylene (PE) or ABS seamless one-piece liner. This FRP tanks comes in two layers of protection which is a perfect resistant against corrosion making it rustproof.
FRP water tank are classified into some types.
With its shell made from continuous strands of fiber-glass with high strength epoxy resin, the tank has many sizes
This FRP tank has its operation temperature from 1 - 49 oC (34 oF - 120 oF).
This FRP storage tanks has its specific design calculations to have a longer and durable performance. Details listed below:
Working pressure: 100 psi
Testing pressure: (a) ≤ 1.0 MPa (150 psi) (10.5 bar)
Bursting pressure: 300 psi
Maximum vacuum 127 mmHg (5"Hg)
Opening: 2.5" NPSM, 4" - 8" UN, flange
Blue
Grey
Natural color
However, to suit on some customer’s request, manufacturers of FRP tanks has been offering a custom-made design.

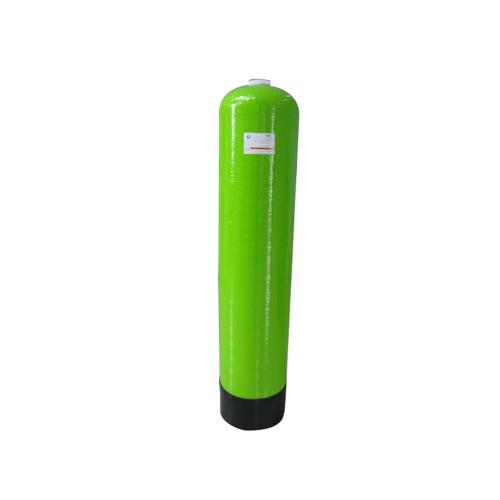

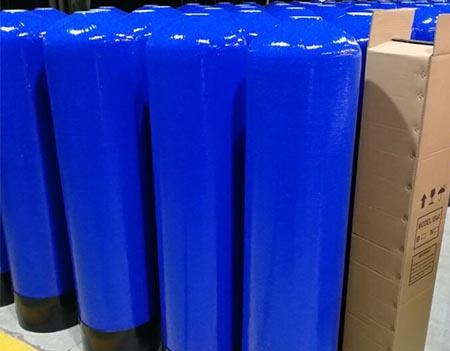

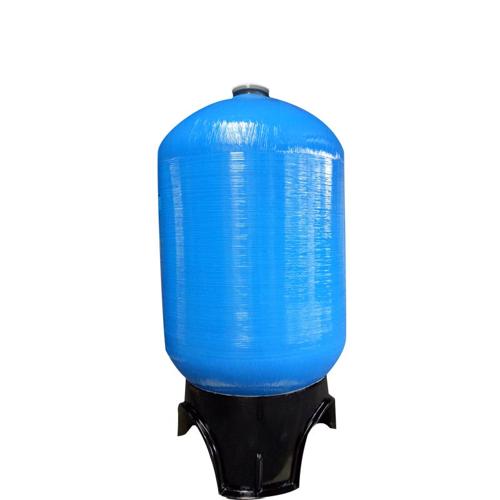

Blue FRP tank

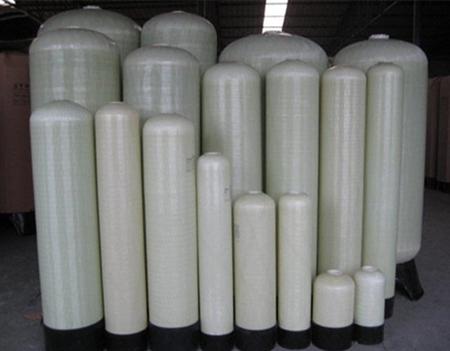

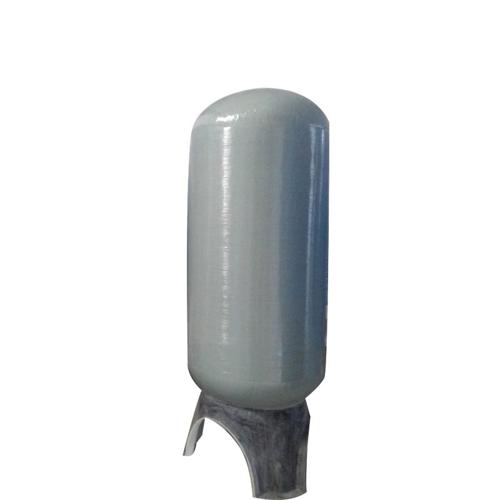

Grey FRP tank

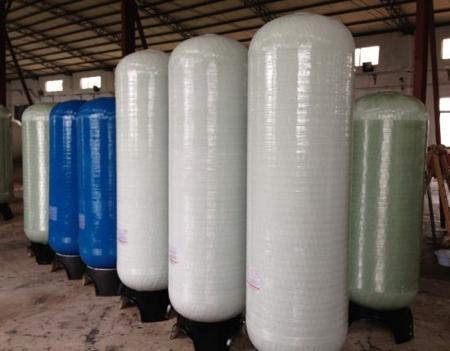

Natural color frp tank
The tank has a high corrosion-resistant performance which resists to almost all chemicals we have been using today. Even in the industry of a friend that I knew, their FRP tank safely conveys all the various chemicals they have been using during the production.
The FRP tank shell is manufactured from strands of fiber-glass with high epoxy resin which provides a fine gloss on the tank's outer coating that serves as a rust proof too.
With Fiberglass Reinforced Plastic tank unique characteristic, it only weighs about 1/3 of the weight of stainless steel tanks. During installation, we did not find any trouble even on the transport from one location to another as it can be conveniently handled by just a few people compared to other tanks made by other materials.
Good thing for our company as the standard FRP tank size fits on. However for those who wants for a customized design flexible enough on the purpose, numerous manufacturer has been offering a custom-design FRP tanks to cater every customer's desire.
In terms of high pressure, this FRP storage tank can withstand more than those tank made of steel or other materials.
Aside from being low maintenance, it is as well, durable. This made Fiberglass tanks more effective than other tanks specially the steel tank.
So far, based on experience, the only disadvantage with FRP tanks are only when there is an extreme heat present either in the content of the tank or outside where it is settled in. Aside from that, no other downside we can think of against the product.
At first, we were thinking twice on getting a steel tank, considering the steel properties compared to steel. However, when we were introduced to FRP tank, we were convinced by simply looking initially on its design and materials used.
When we are already using it, we keenly observed on the disadvantages it can bring to our processes in the industry. Two years is quite enough time to show a review on a product that you have been personally using.
The longest life time compared with other material water tank.
The best tensile strength and yield strength material for industrial water tank.
The best heat resistance material in Africa for raining water project. especially the outside temperature is more than 40degree.
Very easy installation by screws with no leaking if use our sealing taps and glass cement.
With HDPE lining to make the cleaning more easy and convenient.

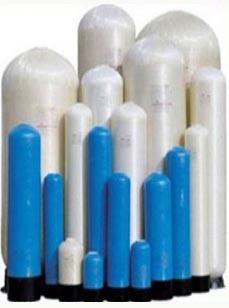

products

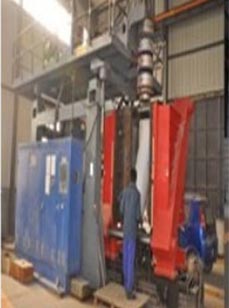

mega blow molding machine

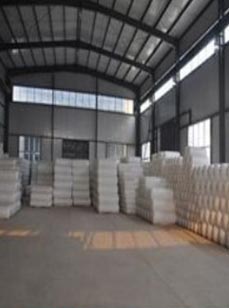

PE liner

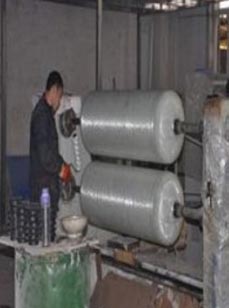

fiberglass fiament

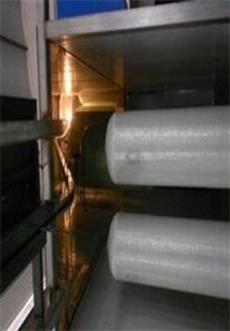

far infrared curing
process quality inspection

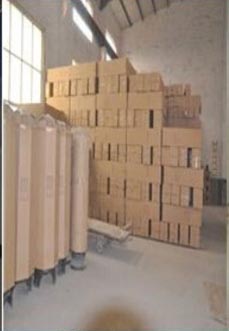

ware house
shipment

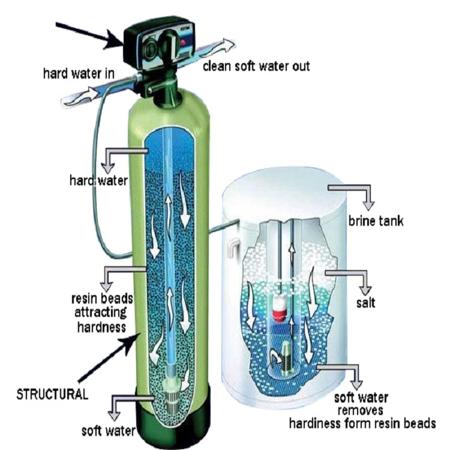

FRP tanks, specially if used in water treatment, then it can filter the suspended solids and any pungent odor. On the other hand, it can also be used to soften hard water in the process of reducing the concentration of calcium, magnesium, and come metal cations present.
Due to the notable advantages of this FRP tanks, it is already taking place the wide use of metal tanks in different fields. In either treatment or storage, this FRP tanks plays a big part not only for household purposes but also in commercial water. This tank is widely used in either industry and civil life while including on industries like:
Chemical industry
Light industry
Textile industry
Medicine
Biology
Food
Electroplating Waste
Waste water treatment

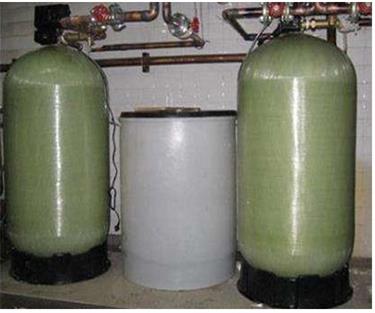

Frp tank used in the factory

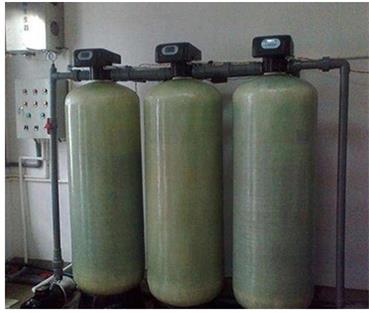

Frp tank used in textile industry

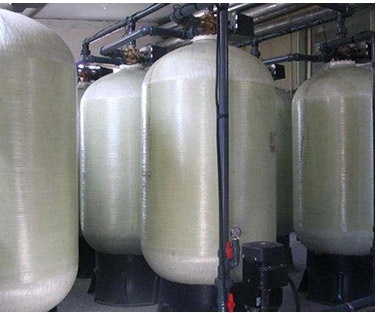

frp-tank-used-in-biology-industry

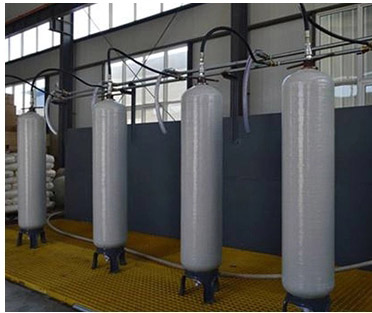

Frp tank used in chemical
Fiberglass reinforced plastic tanks are often advantageous as liquid storage tanks when aggressive chemicals are involved.
For temperatures reaching a minimum of 34 oF or in a maximum of 120 oF, then FRP tank is the best one.
FRP tank sizes comes in two standard sizes however if you want a customized one then be happy as a lot of FRP tank manufacturers has been offering a custom design to fit on their customer's requirement just like Augusta Fiberglass Coating Inc.
It arrives on the expected date of delivery. It's actually fast and reliable.

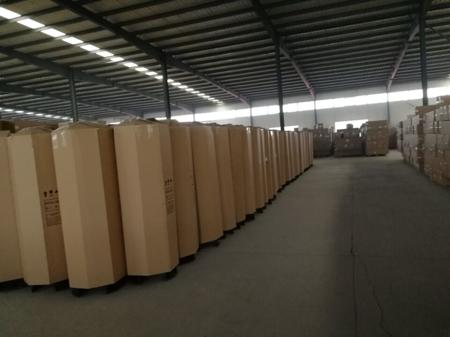

There are many frp tanks in our factory

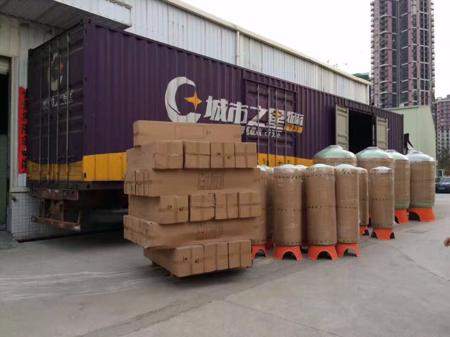

Frp water panels to load on our trucks
We deliver frp tanks with high quality
If you haven't used any of these FRP tank products, then a try is worth enough to see it for yourself on the overall performance it offers. Obviously, we are not giving you a biased review. We just want others to choose for the right product and help them save time and money. Performance really matters, that is why buying an FRP tank is really a best choice,If you buy them from us, you get frp tank price list about our frp tank products.
